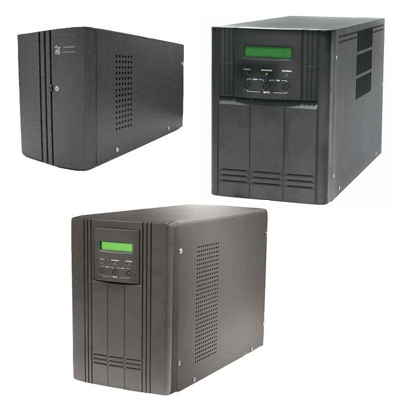

Smart Guard Line Interactive Sinewave UPS Specification Tower Series

Category: Line Interactive
June 21,2020-1:41 PM

Functions:

  • Lighting and surge protection
  • Normal `back up ` fault status LED or LCD display
  • Short circuit and overload protection
  • 50/60 Hz frequency auto sensing
  • Tel/modem internet spike protection
  • Smart power management with software
  • Fully digitized microprocessor controlled
  • Smart RS-232 communication port
  • Rack & Tower convertible
  • Line interactive design
  • Boost and buck AVR
  • Intelligent fan speed control
  • Pure Sine wave output
  • Charge when UPS is off
  • Load/Battery power meter display
  • Cold start (DC power on)
  • SNMP capability (optional)
  • USB capability (optional)



Model
Standard Mode
A-650
A-800
  B-1000  B-1500 B-2000 C-2200 C-3300
Capacity
VA/Watt
650VA/390W
800VA/480W
1KVA/600W 1.5KVA/900W 2000VA/1200W  2200VA/1320W  3300VA/1980W
Input
 Nominal Voltage
 110Vac / 220Vac

 100V, 110V, 115, 120V / 220V, 230V, 240V
 Voltage Range
 Acceptable Voltage Range
 110Vac ±30% / 220Vac ±30%

 100V, 110V, 115,120V±30% / 220V, 230V, 240V±30%
 Frequency
 50Hz ±10%/ 60Hz ±10% Auto Sensing
 Boost Transfer
 100Vac ± 2% / 200Vac ± 2%
 85V, 94V, 98V, 102V± 2% / 187V, 196V, 204V± 2%
 Buck Transfer
 120Vac ± 2% / 240Vac ± 2%
 115V,126V,132V,± 2% / 253V,264V, 264± 2%
 Line Low Transfer
 85Vac ± 2% / 170Vac ± 2%
 74V, 81V, 85V, 89VV± 2% / 163V, 170V, 177V± 2%
Line High Transfer
 145Vac ± 2% / 290Vac ± 2%
 130V,143V,150V,150V± 2% / 287V,300V,300V± 2%
 Output
 Voltage (LCD adjustment)
No
 100V,110V, 155V, 120V / 220V,230V,240V ----LCD Panel
 Voltage Regulation
 Line Mode
 ± 15%
 Battery Mode
 ± 3% RMS for entire battery voltage range
 Frequency Regulation
 Line Mode
 Follow Ac Line Hz
 Battery Mode
 50Hz or 60Hz ±0.1Hz
 Waveform
Pure Sine wave
Power Factor
0.6
Effiecincy
> 80%
Overload Protection
 Line Mode
Circuit Breaker
 Battery Mode
110% ~ 150% for 30 sec. , >150% for 200ms
Transfer Time
Typical
2-4 ms.
 Battery
 Battery Voltage
12Vdc
12Vdc
 24Vdc 24Vdc  24Vdc 36V  36V
 Battery Type
7.2AH
9AH
 7.2AH 9AH  9AH 9AH 7.2AH
 Battery Quantity
1pc
1pc
 2pcs 2pcs 2pcs  3pcs 6pcs
 Backup Time
 Standard Mode
3-6 mins ( at full load )
 Recharge
 Standard Mode
4 hours ( to 90% of full capactity )
Display for LCD
LCD
X
 UPS status, I/P & O/P Voltage Frequency, Load% Battery Voltage & %, Temperature, Model
LED
Normal (Green), Back up (Green Slash),
Fault ( Green No Lighting )

 Normal (Green), Back up (Yellow),
Fault (Red)
 Audible Alarm
Battery Mode
 Beeping every 4 seconds
Low Battery
Beeping every 1 second
UPS Fault
Beeping Continuously
Overload
      Beeping twice per second
 Communication Port
　
USB

 RS232
 Environment
 Operation Temperature
0-40 degree C; 32-104 degree F
 Relative Humidity
0-95% non-dondensing
 Audible Noise
Less than 45dBA (at 1M)
 Physical
 Standard Mode
 Net Weigh (Kgs)
 7.5Kgs
 8.5Kgs
  15Kgs 16Kgs 17Kgs 25Kgs 33Kgs
 (DxWxH)mm
302*113*168
 390*125*190
Interface
 RS232 / USB
Support Windows 95/98/NT/2000/XP, Novell , and Linux
