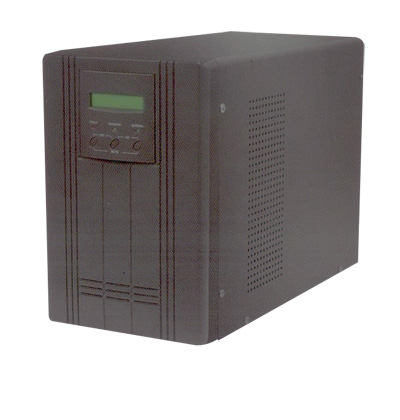

Smart Guard Line Interactive Sinewave

Category: Line Interactive
September 08,2015-10:26 AM

Smart GuardFeatures

  • Lightning and surge protection.
  • Normal backup fault status LED or LCD display.
  • Short circuit and overload protection.
  • 50/60 Hz frequency auto sensing.
  • Tel-modem internet spike protection.
  • Smart power management with software.
  • fully digitized microprocessor controlled.
  • Smart RS-232 communication port.
  • Line interactive design.
  • Boost & buck AVR.
  • Intelligent fan speed control.
  • Pure sine wave output.
  • Charge when ups is off.
  • Load / battery power meter display.
  • Cold start (DC power on).
  • SNMP capability (optional).
  • USB capability (optional).

Smart Guard Line Interactive Sinewave UPS Specification Tower Series

Model Standard Mode A-650 A-800 B-1000 B-1500 B-2000 C-2200 C-3300
Capacity VA/Watt 650VA/390W 800VA/480W 1KVA/600W 1.5KVA/900W 2000VA/1200W 2200VA/1320W 3300VA/1980W
Intput Nominal Voltage 110V, 120V 100V,110V,115V,220V/ 230V, 240V
Voltage
Range		 Acceptable Voltage Range 110Vac ±30% /
220Vac ±30%		 100V, 110V, 115V, 120V ±30% / 220V, 230V, 240V ±30%
Frequency 50Hz ±10% / 60Hz ±10% (Auto Sensing)
Boost Transfer 100Vac ±2% / 200Vac ±2% 85V, 94V, 98V, 102V ±2% / 187V, 196V, 204V ±2%
Buck Transfer 120Vac ±2% / 240Vac ±2% 115V, 126V, 132V, 132V ±2% / 253V, 264V, 264V ±2%
Line Low Transfer
85Vac ±2% / 170Vac ±2% 74V, 81V, 85V, 89V ±2% / 163V, 170V, 177V ±2%
Line High Transfer 145Vac ±2% / 290Vac ±2% 130V, 143V, 150V, 150V ±2% / 287V, 300V, 300V ±2%
Output Voltage (LCD Adjustment) NO 100V, 110V, 115V, 120V / 220V 230V, 240V (LCD panel)
Voltage
Regulation		 Line Mode ±15%
Battery Mode ±3% RMS for entire battery voltage range
Frequency
Regulation		 Line Mode Follow Ac Line Hz
Battery Mode 50Hz or 60Hz ±0.1Hz
Waveform Pure Sine Wave
Power Factor 0.6
Efficiency >80%
Overload
Protection		 Line Mode Circuit Breaker
Battery Mode 110% ~ 150% for 30 sec, >150% for 200ms
Transfer Time Typical 2-4ms
Battery Battery Voltage 12Vdc 12Vdc 24Vdc 24Vdc 24Vdc 36Vdc 36Vdc
Battery Type 7.2AH 9AH 7.2AH 9AH 9AH 9AH 7.2AH
Battery Quantity 1pcs 1pcs 2pcs 2pcs 2pcs 3pcs 6pcs
Backup Time Standard Mode 3~5 min (a full load)
Recharge Standard Mode 4 Hours (to 90% of full capacity)
Display LCD X UPS Status, I/P & O/P Voltage Frequency, Load%,
Battery Voltage & %, Temperature, Model
LED Normal (Green), Backup (Green Flash), Fault (Green no lighting) Normal (Green), Backup (Yellow), Fault (Red)
Audible Alarm Battery Mode Beeping every 4 seconds
Low Battery Beeping every 1 seconds
UPS Fault Beeping Continuously
Overload Beeping twice per second
Communication
Port		   USB RS-232
Environment Operation Temperature 0-40 degree C; 32-104 degree F
Relative Humidity 0-95% non-condensing
Audible Noise Less than 45dBA (at 1 m)
Physical Standard Mode Net Weight (kgs) 7.5Kg 8.5Kg 15Kg 16Kg 17Kg 25Kg 33Kg
(DxWxH) mm 302*113*168 390*125*190 420*200*290 480*200*290
Software Support Windows 95/98/NT/2000/XP, Novell, Linux
