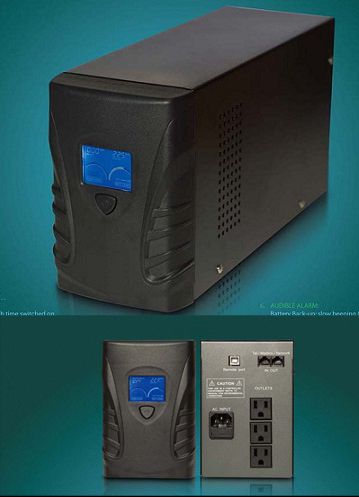

Modified Sine Wave MT LCD Series

Functions

 1.   SELF TEST:

Self test each time switched on.

When UPS is turned on, it makes self-test to provide a reliable operation and prevent any damage caused.

BATTERY PROTECTION:

Auto self-test and discharge protection.

2.   DC START CAPABILITY:

The UPS can be activated without utility power.

3.   UPS POWER SUPPLIED OUTLETS:

Line-Interactive UPS+AVR

Allows 75% to 125% input voltage range-best protection for computer equipment.

With AVR function (boost & buck), UPS provides a stable power to the loads as the input voltage fluctuates.

4.   ELECTRICAL PROTECTION:

Automatic cut off on short circuit or Input Circuit Breaker. If UPS is overload, this circuit breaker will trip to disconnect the unit from utility power. Then the black button will pop up, and none of the surge protection outlets will provide power. Unplug at least one piece of equipment, and reset the Circuit breaker by pressing the button back into place.

5.   MODEM/NETWORK PROTECTION:

RJ45 JACK ; Simultaneous protection for network, telephone, fax & modem.

6.   AUDIBLE ALARM:

Battery Back-up: slow beeping (10 seconds) Battery Low and Overload or AC Overload: Rapid beeping (1 Second)

7.   INTERFACE AND SOFTWARE:

USB Interface.

Software For MS-Windows 98/NT/ME /2000/XP/7/server 2008

RS-232 Interface.

Software For MS-Windows 98/NT/ME /2000/XP/7/server 2008

8.   CPU MICRO PROCESS CONTROL, USE WITH STABILITY.

9.   GREEN FUNCTION:

If the battery is discharging under no load, will shut down automatically to keep the span life of battery

10. BATT FAULT: Red LCD Display

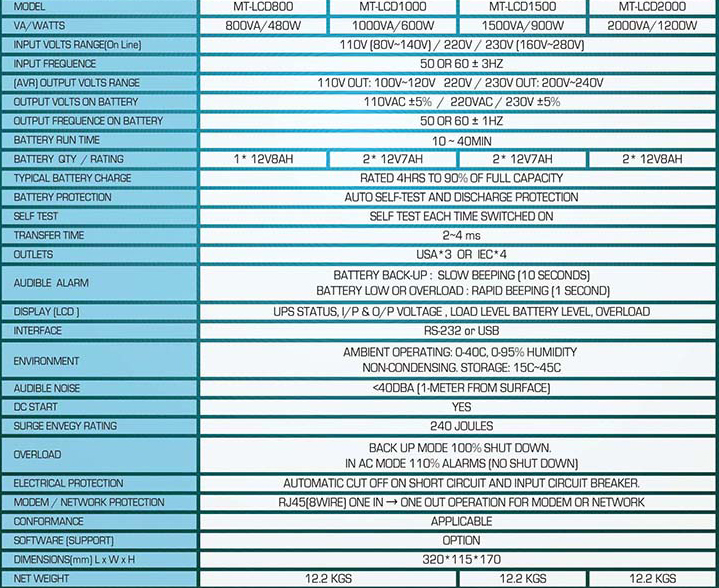

MT-LCD800/1000/1500/2000  Specification
