Power Pro UPS Series

Category: Line Interactive

August 25,2015-9:04 AM

Advanced battery management increases longevity, performance, and reliability
Two-boost and one-buck AVR to stabilize input voltage (650 ~ 2200VA) one-boost and one-buck AVR to stabilize input voltage (3000VA)
LCD displays UPS status, including voltage, load, and battery statuses
Automatic restart of UPS while AC power recovering
Off-mode charging function
USB communications interface with power management software
Friendly battery door design for easy batteries replacement (650 VA ~ 2200 VA)
DC cold start function
140 VAC ~ 295 VAC wide input voltage range version (Optional for 220 V / W models)
Green power function for energy saving (Optional)

Power Pro Line Interactive UPS Specification

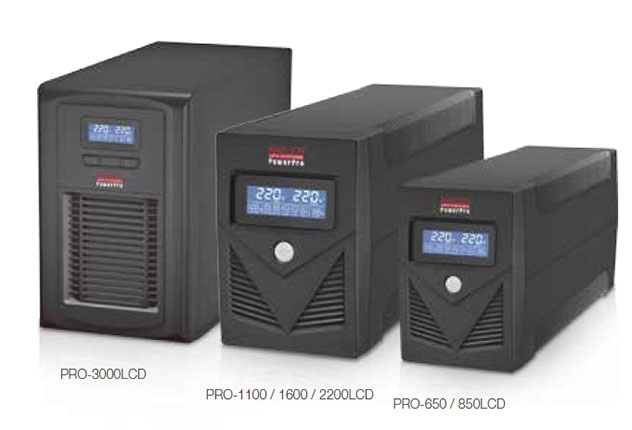

Model		PRO-650LCD	PRO-850LCD	PRO-1100LCD	PRO-1600LCD	PRO-2200LCD	PRO-3000LCD
Capacity		650VA / 360W	850VA / 480W	1100VA / 600W	1600VA / 900W	2200VA / 1200W	3000VA / 1800W
Input
Voltage		110 / 115 / 120Vac or 220 / 230 / 240Vac
Voltage Range		80 ~ 145Vac or 154~280Vac standard(Optional 140~295Vac wide range version for 220 / 230 / 240 Vac models)					±2 5%
Frequency		50/60 Hz (auto sensing)
Output
Voltage		110 / 115 / 120Vac or 220 / 230 / 240Vac
Frequency		50/60 Hz
Voltage Regulation (Battery Mode)		±10%
Frequency Regulation (Battery Mode)		±1 Hz
Waveform (Battery Mode)		simulated sine wave
Battery
Battery Type & Number		12V / 7AH x 1	12V / 9AH x 1	12V / 7AH x 2		12V / 9AH x 2	12V / 9Ah x 4
Backup Time (60 W)		up to 38 Min	up to 48 Min	up to 85 Min	up to 95 Min	up to 100 Min	up to 210 Min
Charging Voltage		13.7 VDC ±2%	13.7 VDC ±2%	27.4 VDC ±2%	27.4 VDC ±2%	27.4 VDC ±2%	54.8 VDC ±2%
Recharge Time		5 hours to 90% after complete discharge
INDICATOR	Display	LCD displays UPS status, including voltage, load, and battery status
TRANSFER TIME	Typical	< 6ms (typical)
Protection
AC Surge Protection		320 joules		480 joules
Phone / Fax / Network Surge Protection		RJ -11/45 combo port (1 in & 1 out)
Physical
Dimension (DxWxH) (mm/in)		315.5x100x141 / 12.4x3.9x5.6		343x135x208 / 13.5x5.3x8.2			390x182x285 / 14.4x7.2x11.2
Weight (kg/lb)		4.7 / 10.4	5.7 / 12.6	8.1 / 17.9	9.7 / 21.4	11.4 / 25.1	28 / 61.7
