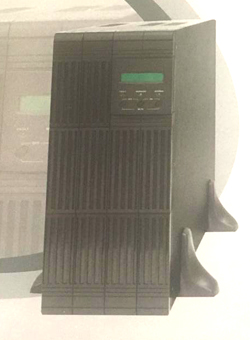

True Sine Wave Rack & Tower Convertible Series

Category: Weli
June 21,2020-11:27 AM

Functions:

  • Lighting and surge protection
  • Normal `back up ` fault status LED or LCD display
  • Short circuit and overload protection
  • 50/60 Hz frequency auto sensing
  • Tel/modem internet spike protection
  • Smart power management with software
  • Fully digitized microprocessor controlled
  • Smart RS-232 communication port
  • Rack & Tower convertible
  • Line interactive design
  • Boost and buck AVR
  • Intelligent fan speed control
  • Load/Battery power meter display
  • Energy Saving (UPS sleep mode)
  • Cold start (DC power on)
  • SNMP capability (optional)
  • USB capability (optional)
  • EPO (optional)

True Sine Wave Rack & Tower Convertible Series

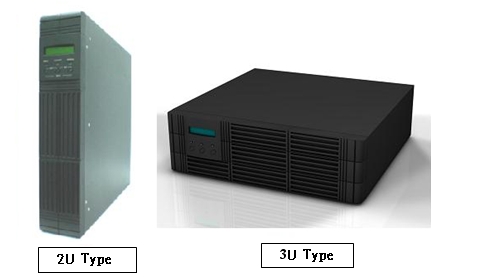

Model

Standard Mode

2U-M1000

2U-M1500

2U-M2000

3U-M3000

4U-M5000

 3U-M3000 3U-M10000

Capacity

VA

1KVA

1.5KVA

2KVA

3KVA

5KVA

  7.5KVA  10KVA

Watt

600W

900W

1200W

1800W

3000W

 4680W 6250W

 Input

 Nominal Voltage

 100V ,110V, 115V, 120V / 220V, 230V, 240V

220V, 230V, 240V


Voltage Range

 Frequency

 50Hz ±10%/ 60Hz ±10% (LCD adjustment)



 Boost Transfer

85V,94V, 98V, 102V± 2% / 187V, 196V, 204V ± 2%

 187V, 196V, 204V ± 2%

 Buck Transfer

 115V, 126V, 132V, 132V± 2% / 253V, 264V ± 2%

 253V,264V, 264V± 2%

 Line Low Transfer

 74V, 81V, 85V, 89V ± 2% / 163V, 170V, 177V ± 2%

 163V, 170V, 177V± 2%

 Line High Transfer

 130V, 143V, 150V, 150V ± 2% / 287V, 300V, 300V± 2%

 287V, 300V, 300V± 2%

 Output

 Voltage

100V, 110V, 115V, 120V / 220V, 230V, 240V (LCD adjustment)

 220V, 230V, 240V (LCD adjustment)

 Voltage Regulation

 Line Mode

 ± 15%



 Battery Mode

 ± 2% RMS for entire battery voltage range



 Frequency Regulation

 Line Mode

 Follow Ac Line Hz



 Battery Mode

 50Hz or 60Hz  ±0.1Hz



 Waveform

Pure Sine wave



Power Factor

0.6



Efficiency

> 80%



Overload Protection

 Line Mode

Circuit Breaker



 Battery Mode

110% ~ 150% for 5-10 sec. , >150% for 200ms



Transfer Time

Typical

2-4 ms.



 Battery

 Battery Voltage

24Vdc

36Vdc

36Vdc

36Vdc

48Vdc

  48Vdc  48Vdc

 Battery Type

7.2AH

7.2AH

9AH

7.2AH

9AH

 7.2AH  9AH

 Battery Quantity

2pcs

3pcs

3pcs

6pcs

8pcs

 16pcs 16pcs

 Backup Time

 Standard Mode

> 3 min  ( at full load )



 Recharge

 Standard Mode

4 hours ( to 90% of full capacity )



Display

LCD

UPS status, I/P&O/P Voltage Frequency, Load%,Battery Voltage & %, Temperature, Model




LED

Normal (Green), Back up (Yellow), Fault (Red)



 Audible Alarm

Battery  Mode

 Beeping every 4 seconds



Low Battery

Beeping every 1 second



UPS Fault

Beeping Continuously



Overload

      Beeping twice per second



 Communication  Port

　

 RS232



 Environment

 Operation Temperature

0-40 degree C; 32-104 degree F



 Relative Humidity

0-95% non-dondensing



 Audible Noise

Less than 45dBA (at 1M)



 Physical

 Standard Mode

 Net Weigh (Kgs)

 16Kgs

 17.5Kgs

 22Kgs

 37Kgs

 50Kgs

 34.6Kgs 36.6Kgs

 (DxWxH)mm

465*440*88

465*440*132

620*440*176

 465*440*132

Software

　

Support Windows 95/98/NT/2000/XP, Novell , and Linux
