Modified Sine Wave Ts Series

Functions

  1. Self Test:
    Self test each time switched on.
    When UPS is turned on, it makes self-test to provide a reliable operation and prevent any damage caused.
    Battery Protection:
    Auto Self-test and discharge protection
  2. DC Start Capability:
    The UPS can be activated without utility power.
  3. UPS Power Supplied outlets
    Line-Interative UPS + AVR Allows 75% to 125% Input Voltage range- best protection for computer equipment. With AVR function (boost & buck), UPS provides a stable power to the loads as the input voltage fluctuates.
  4. Electrical protection
    Automatic cut off on short circuit or Input Circuit Breaker. If UPS is overload, this circuit breaker will trip to disconnect the unit from utility power. Then the black button will pop up, and none of the surge protection outlet will provide power. Unplug at least one piece of equipment, and reset the circuit breaker by pressing the button  back into place.
  5. Modem/Network Protection
    RJ45 JACK; simultaneous protection for network, telephone, fax & modem.
  6. Audible Alarm
    Battery back-up: slow beeping (10 seconds) Battery Low and Overload or AC Overload: Rapid beeping (1 Second)
  7. Interface and Software
    USB Interface. Software For MS-Windows 98/NT/ME/2000 RS-232 Interface. Software for MS-Windows 98/NT/ME/2000, Novell, Linux
  8. CPU Micro process control, Use with Stability
  9. Green Function:
    If the battery is discharging under no load, will shut down automatically to keep the span life of battery
  10. Batt Fault: Red LED Display



MODEL
TS – 500
TS-650
TS – 800
UPS VOLTAGE /WATTS
500VA / 250W
650VA / 325W
800VA / 400W
Surge protection WATTS
750W
675W
600W
INPUT VOLTS RANGE(On Line)
110V (80V~140V) / 220V (160V~280V)
INPUT FREQUENCE
50 OR 60 ± 3HZ
(AVR) OUTPUT VOLTS RANGE
110V OUT: 100V-120V   220V OUT: 200V-240V
OUTPUT VOLTS ON BATTERY
110VAC ±10% / 220VAC ±10%
OUTPUT FREQUENCE ON BATTERY
50 OR 60 ± 1HZ
BATTERY RUN TIME
10 ~ 30MIN
BATTERY QTY / RATING
1 x 6V4.5AH
1x 12V7AH
1x 12V9AH
TYPICAL BATTERY CHARGE
RATED 4HRS TO 90% OF FULL CAPACITY
BATTERY PROTECTION
AUTO SELF-TEST AND DISCHARGE PROTECTION
SELF TEST
SELF TEST EACH TIME SWITCHED ON
TRANSFER TIME
2~4 ms

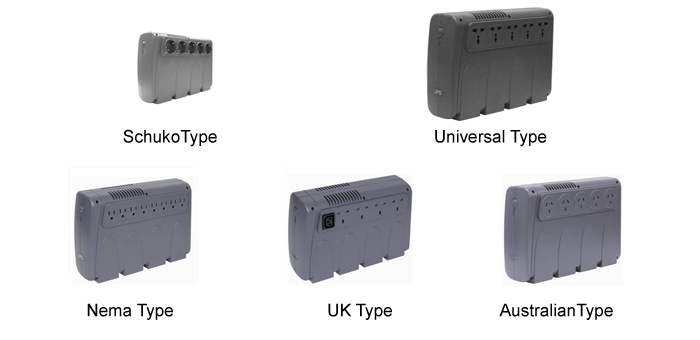

OUTLETS

NEMA Type
8 outlets(2 for surge protection, 4 for battery backup)
Schuko Type
5 outlets(2 for surge protection, 3 for battery backup)
French Type
5 outlets(2 for surge protection, 3 for battery backup)
Australian Type
5 outlets(2 for surge protection, 3 for battery backup)
Universal Type
5 outlets(2 for surge protection, 3 for battery backup)
UK Type
4 UK + 1 IEC (2UK for surge protection, 2UK + 1 IEC for battery backup)
AUDIBLE ALARM
 BATTERY BACK-UP : SLOW BEEPING (10 SECONDS)
     BATTERY LOW OR OVERLOAD : RAPID BEEPING (1 SECOND)
INDICATORS
GREEN LED ON-LINE. BACK UP SLASH
RED LED OVERLOAD: BATTERY FAILT.
INTERFACE
RS-232
ENVIRONMENT
AMBIENT OPERATING: 0-40C, 0-95% HUMIDITY NON-CONDENSING. STORAGE: 15C ~ 45C
AUDIBLE NOISE
<40DBA (1-METER FROM SURFACE)
DC START
YES
SURGE ENVEGY RATING
240 JOULES
OVERLOAD
BACK UP MODE 100% SHUT DOWN.
 IN AC MODE 110% ALARMS (NO SHUT DOWN)
ELECTRICAL PROTECTION
AUTOMATIC CUT OFF ON SHORT CIRCUIT AND INPUT CIRCUIT FUSE
MODEM / NETWORK PROTECTION
RJ45(8WIRE) ONE IN  ONE OUT OPATION FOR MODEN OR NETWORK
CONFORMANCE
APPLICABLE
SOFTWARE (SUPPEORT)
Download from website
DIMENSIONS(mm) L x W x H
270 x 84 x 190
NET WEIGHT
5.0KGS
5.5KGS
6.9KGS
