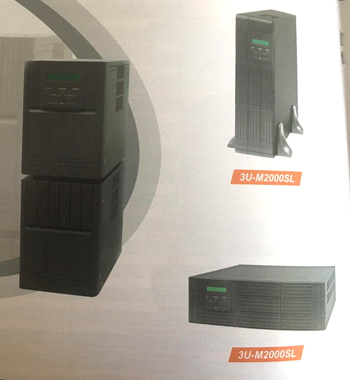

Pure Sinewave long backup time tower series

Smart Guard Line Interactive Sinewave UPS Specification Long Backup Time Tower Series



Model
Standard Mode
 B-1000L  B-1500L 3U-M2000SL
Capacity
VA/Watt
1000VA/600W 1500VA/900W  2000VA/1200W
Input
 Nominal Voltage
100V, 110V, 115, 120V / 220V, 230V, 240V
 Voltage Range
 Acceptable Voltage Range
100V, 110V, 115,120V±30% / 220V, 230V, 240V±30%
 Frequency
 50Hz ±10%/ 60Hz ±10% Auto Sensing
 Boost Transfer
85V, 94V, 98V, 102V± 2% / 187V, 196V, 204V± 2%
 Buck Transfer
115V,126V,132V,± 2% / 253V,264V, 264± 2%
 Line Low Transfer
74V, 81V, 85V, 89V± 2% / 163V, 170V, 177V± 2%
Line High Transfer
130V,143V,150V,150V± 2% / 287V,300V,300V± 2%
 Output
 Voltage
 100Vac / 220Vac ----LCD Panel
 Voltage Regulation
 Line Mode
 ± 15%
 Battery Mode
 ± 3% RMS for entire battery voltage range
 Frequency Regulation
 Line Mode
 Follow Ac Line Hz
 Battery Mode
 50Hz or 60Hz ±0.1Hz
 Waveform
Pure Sine wave
Power Factor
0.6
Efficiency
> 80%
Overload Protection
 Line Mode
Circuit Breaker
 Battery Mode
110% ~ 150% for 30 sec. , >150% for 200ms
Transfer Time
Typical
2-4 ms.
 Battery
 Battery Voltage
24Vdc 24Vdc  36Vdc
Charge Current (max)
12A 15A 10A
Recharge
 Standard Mode
 4 hours ( to 90% of full capacity )

Display for LCD
LCD
UPS status, I/P & O/P Voltage Frequency, Load% Battery Voltage & %, Temperature, Model
LED
Normal (Green), Back up (Yellow),
Fault (Red)
 Audible Alarm
Battery Mode
 Beeping every 4 seconds
Low Battery
Beeping every 1 second
UPS Fault
Beeping Continuously
Overload
      Beeping twice per second
 Communication Port

RS232
 Environment
 Operation Temperature
0-40 degree C; 32-104 degree F
 Relative Humidity
0-95% non-dondensing
 Audible Noise
Less than 45dBA (at 1M)
 Physical
 Standard Mode
 Net Weigh (Kgs)
 11 12.5 50
 (DxWxH)mm
302*113*168 665*440*132
Interface
 RS232 / USB
Support Windows 95/98/NT/2000/XP, Novell , and Linux
