Ultima W Series

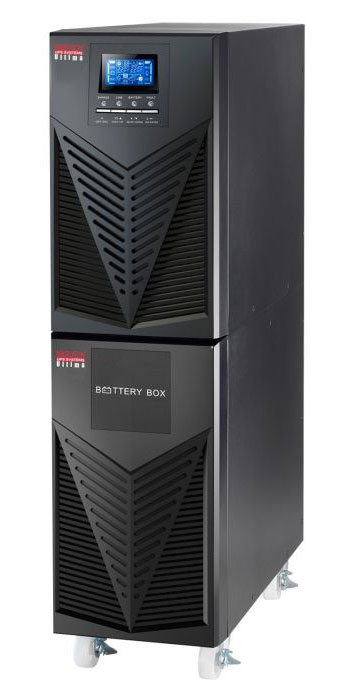

10KVA Online UPS, ULT-W10K
Overview
The Ultima W series UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. This series UPS cuts energy costs while significantly extending battery service life with ABM technology and it also has a bright LCD user interface to simplify monitoring.
Applications
Cost Effective Online UPS for Server Rooms, Telecom & Networking Applications, Surveillance & Security Systems, and Medical Applications.
Technical Specs
| Model | ULT-W10K | ||
| Capacity | 10000VA/9000W | ||
| Input | |||
| Voltage | 200 / 208 / 220 / 230 / 240 VAC | ||
| Voltage Range | 176 ~ 300 VAC at 100% load; 110 ~ 300 VAC at 50% load | ||
| Frequency Range | 40Hz~70Hz | ||
| Output | |||
| Voltage | 200 / 208 / 220 / 230 / 240 VAC | ||
| Frequency Range | 47~53Hz or 57~63hz (synchronized range) | ||
| Current Crest Ratio | 3:1 | ||
| Harmonic Distortion | ≤ 3% THD (linear load)/ ≤ 5% THD (non-linear load) | ||
| Transfer Time | Zero (AC mode to battery mode), typical 4ms (inverter to bypass) | ||
| Efficiency | |||
| To AC Mode | 93% | ||
| To Battery Mode | 91% | ||
| Battery | |||
| Standard Model | Type & Number | 12V/9Ah x 16 pcs (20 pcs optional) | |
| Typical Recharge Time | 8 hours recover to 90% capacity | ||
| Charging Current | Default 1.0A | ||
| Charging Voltage | 218.4 VDC ±1% | ||
| LCD Display | Load level, battery level, AC mode, battery mode, bypass mode, and fault indicators | ||
| Management | |||
| Smart RS-232/USB | Supports windows® 2000/2003/XP/Vista/2008/7/8/Linux/Unix/MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | ||
| Physical | |||
| Standard Model | Dimension (D x W x H) (mm/in) |
442x 190 x 688 / 17.4 x 7.5 x 27.1 |
|
| Net Weight (kg/lb) |
66 / 145.5 |
||
Product specifications are subject to change without further notice. Battery backup time is based on a basic PC or half load and varies with equipment, configuration, battery age, temperature, ect.
ULT-W10K Runtime
| 112W | 56 minutes | 5625W | 9.75 minutes | |
| 2250W | 26 minutes | 6750W | 7.5 minutes | |
| 3375W | 19 minutes | 7875W | 5.5 minutes | |
| 4500W | 12 minutes | 9000W |
3.5 minutes |
