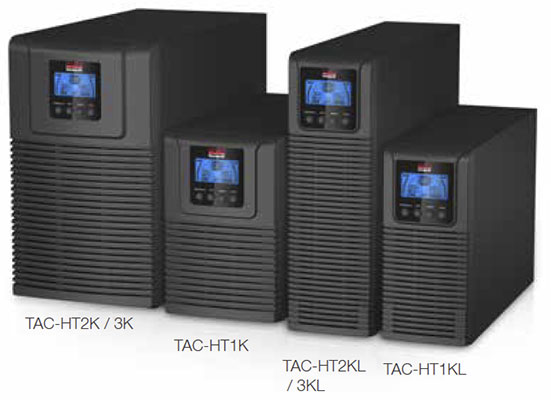

Tacoma HT Series

Category: Online
September 01,2015-7:49 AM

TacomaFeatures

  • True double-conversion technology with high adaptability.
  • 0.9 output power factor.
  • High efficiency mode (ECO mode), η > 97%.
  • DSP controlled for advance maintenance.
  • Generator compatible and pure sine wave output.
  • Programmable LCD display.
  • Wide input voltage (110V - 300V).
  • Input THDi < 5% and Output THDv < 1%.
  • Frequency converter mode.
  • Recharge to 90% battery capacity within 4 hours.
  • Built-in RS-232 & HID USB communication and software can be downloaded from website.
  • Emergency Power Off function (EPO).
  • External battery bank connector (Optional).
  • Built-in intelligent slot allows to install optional AS400 or SNMP card

Applications

  • ATM
  • Kiosk
  • Server Rooms
  • Office Equipment

Tacoma HT On-Line UPS Specification

 Model  TAC-HT1K TAC-HT1KL TAC-HT2K TAC-HT2KL TAC-HT3K  TAC-HT3KL
 Capacity 1100VA / 900W 2000VA / 1800W 3000VA / 2700W
 Input
 Voltage Range 100 ~ 300VAC
 Frequency Range 45-55Hz / 54-66Hz
 THDI <5% with full load
 Power Factor ≥0.99 @ nominal voltage (100% load)
 Output
 Voltage  220 / 230 / 240 Vac
 Crest Crest Ratio 3:1
 Harmonic Distortion <1% THD (linear load);  <5% THD (non-linear load)
 Efficiency
 Inverter Mode >88% >90%
 Battery
 Battery Type & Number 12V/9 Ah x 2 Depending on
capacity of
external batteries		 12V/9 Ah x 4 Depending on
capacity of
external batteries		 12V/9 Ah x 6 Depending on
capacity of
external batteries
 Backup Time (Half Load) >10.5 min >10.5 min >10.5 min
 Recharge Time 4 Hours to 90% 4 Hours to 90% 4 Hours to 90%
 Charging Current 1.5A 3A/6A 1.5A 3A / 4.5A / 6A 1.5A 3A / 4.5A / 6A
External Battery Bank (EBB) / Optional
 Number of Batteries Per Set 2pcs x 3 / 24 VDC 4pcs x 3 / 48 VDC 6pcs x 2 / 72 VDC
 Battery Type 12V / 9Ah
 Transfer Time
Typical 0ms @ BAT <--> Line; <4ms @ INV <--> Bypass
 Indicator
 Programmable LCD Display LCD show the Load/battery/input/output/operating mode information and user can able setting key electrical parameter via LCD
 Interface
 Smart RS-232/HD USB Supports Windows® 2000/2003/XP/Vista/2008/7/7/10/Linux/Mac
 Intelligent Slot Option SNMP / AS400 card
 EPO Connector Emmergency power off
 Physical
 Dimension (WxHxD) (mm/in) 144x229x345
5.7x9.0x13.6		 102x228x352 / 4.0x9.0x13.9 190x330x393
7.5x13.0x13.9
 102x327x396 / 4.0x12.9x15.6 190x330x393
7.5x13.0x15.5		 102x327x396 / 4.0x12.9x15.6
 Net Weight (kg/lb) 9.4 / 20.7 3.8 / 8.4 17 / 37.5 6 / 13.2 22.2 / 49.0 6.1 / 13.5
