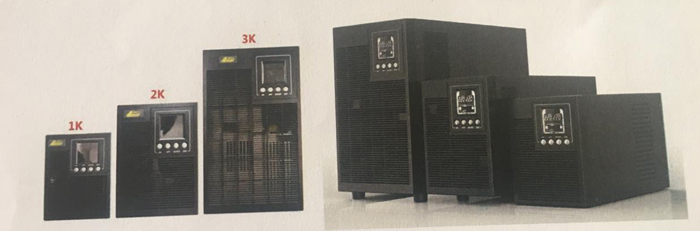

WAR 1000/1000L Pro - WAR 2000/2000L Pro - WAR 3000/3000L Pro



Features

  • Output Power Factor 0.9
  • Wide Input Range (80V - 300V)
  • ECO Mode for Energy Saving
  • Generator Compatible
  • HID USB Communication
  • Emergency Power Off (EPO) Port
  • Battery Extendable On All Models



 Model Name WAR 1000/1000L Pro
WAR 2000/2000L Pro  WAR 3000/3000L Pro
 Capacity  1000VA / 900W
2000VA / 1800W  3000VA / 2700W
 Input
 Nominal Voltage  220-240 Vac
 Voltage Range  80-300 Vac
 Normal Frequency 50Hz/60Hz
 Frequency Range  40-70Hz
 Power Factor  0.99
 Output
 Nominal Voltage (Batt. Mode) 208/220/230/240 Vac
 Voltage Regulation ±1%
 Normal Output Frequency 50Hz / 60Hz
 Frequency Range (batt.) 50Hz/60Hz±0.5%
 Wave Form Pure Sine Wave
 THDv ≤3% @ (linear load); ≤5% @ (non-linear load)
 Current Crest Ratio 3:1
 Transfer Time 0ms
 Overload Protection Line Mode 105%-110%, warning only (No shutdown) 110%-120%, transfer to bypass after 60s>120%, Transfer to bypass immediately
Battery Mode 105%-110%, warning only (No shutdown) 110%-120%, shutdown after 10s>120%, shutdown immediately
Bypass Mode 110%-130%, warning only>130%, shutdown immediately
 Battery
Model Name  1000-2B 1000-3B 1000L 2000-4B 2000-6B 2000L 3000-6B 3000-8B 3000L
Battery Voltage 24V 36V    24V/36V 48V 72V 48V/72V 72V 96V 72V/96V
Battery Type 12V/9Ah 12V/7Ah Depending on External Batteries 12V/9Ah 12V/7Ah Depending on External Batteries 12V/9Ah 12V/7Ah Depending on External Batteries
Total Battery Quantity 2 3 4 6 6 8
Recharge Time (to 90%) 4H 4H 4H 4H 4H 4H
Charging Current  1.5A 4A/8A  1.5A  4A/8A 1.5A   4A/8A
 Efficiency
Efficiency (Inverter Mode)
88% 90% 91%
Efficiency (Batt. Mode) 85% 87% 88%
ECO Mode 96% 96% 96%
 Indicators
Display LCD
Alarm Yes
 Interface
RS232 Yes
HID Compliant USB Port Yes
EPO Yes
SNMP Yes
 Management
Auto Recharge Yes
Auto Restart
Yes
Power Management Software Yes
 Physical
Dimension (W x H x D) (mm) 140x191x327 151x225x390 140x191x327 151x225x390 196x342x416 151x225x390 196x342x416  151x225x390
Net Weight (kgs) 14.5 16.5 4 17.14 22.5 6.9 21.3 26.7  7.5
 Environment
Operating humidity 0-90% non- condensing
Operating Temperature 0-40%ºC
Noise Level <45dB
