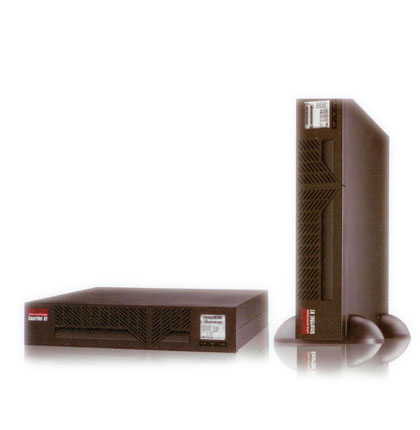

SmartNet R/T Series

Category: Maruson
August 25,2015-10:23 AM

Smart NetFeatures

  • Microprocessor-based line interactive design
  • Pure sine wave output
  • User-friendly and easy-shift LCD display
  • Rack / Tower design
  • Built-in boost and buck AVR to stabilize voltage fluctuations
  • Output power factor 0.8
  • Hot-swappable battery design
  • Programmable power management outlets
  • ECO operation for energy saving (Efficiency Corrective Optimizer)
  • Emergency Power Off Function (EPO)
  • Long-run models available
  • USB communication port with power management software and monitor UPS status
  • RS-232 port supports SNMP adapter for remote monitoring & control


SmartNet Rack/Tower Line Interactive UPS Specification

 Model  NET-800RT  NET-1100
(L) RT		 NET-1500RT  NET-2000
(L) RT		 NET-2500 RT  NET-3000
(L) RT
 Capacity 800VA / 640W 1100VA / 880W 1500VA / 1200W 2000VA / 1600W 2500VA / 2000W  3000VA / 2400W
 Input
 Voltage 110 / 120Vac or 208 / 220 / 230 / 240Vac
 Acceptable Voltage Range 81 - 145Vac or 162-290Vac
 Frequency Range        60/50 Hz (auto sensing)
 Output
 Voltage  110 / 120Vac or 208 / 220 / 230 / 240Vac
 Voltage Regulation (Battery Mode) ±3% (before low battery alarm)
 Crest Ratio 3:1
 Harmonic Distortion 8% max @ 100% non-linear load / 15% max @ 100% non-linear load
(before low battery alarm)
 Transfer Time  2-6 ms (Typical)
 Efficiency
 AC Mode 97%
 Buck & Boost Mode 90%
 Battery Mode 83% 85% 87%
 Battery
 Standard Model Type & Number 12V / 7AH
x2		 12V / 9AH
x2		 12V / 7AH
x4		 12V / 9AH
x4		 12V / 7AH
x6		 12V / 9AH
x6
Charging Current (max.) 1A
Charging Voltage 27.4 VDC ± 1% 54.8 VDC ± 1% 82.1 VDC ± 1%
Typical Recharge Time 4 Hours recover to 90% capacity
 Long-run Model  Charging Current (max.) N/A 4A / 8A N/A 4A / 8A N/A 4A / 8A
Charging Voltage 27.4 VDC ± 1% 54.8 VDC ± 1% 82.1 VDC ± 1%
 Indicator
 LCD Display AC mode, battery mode, load level, battery level, input & output voltages,
overload, fault & low battery
 Protection
 Full Protection overload, over discharge and overcharge protection
 Management
 Smart RS - 232 / USB Port Supports windows 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / Linux / Unix / MAC
 Optional SNMP Power management from SNMP manager and web browser
 Physical
 Standard Model Dimension (D x W x H) 380x438x88mm / 15.0x17.2x3.5in 480x438x88mm / 18.9x17.2x3.5in 600x438x88mm / 23.6x17.2x3.5in
Net Weight 12.9kg / 28.4lb 14.23kg / 31.4lb 21.08kg / 46.5b 23.1kg / 50.9lb 30.65kg / 67.6lb 32.24kg / 71.1b
 Long-run Model  Dimension (D x W x H) 380x438x88mm / 15.0x17.2x3.5in 480x438x88mm / 18.9x17.2x3.5in 600x438x88mm / 23.6x17.2x3.5in
Net Weight N/A 10.8kg / 23.8lb N/A 14.0kg / 30.9lb N/A 18.0kg / 39.7b
