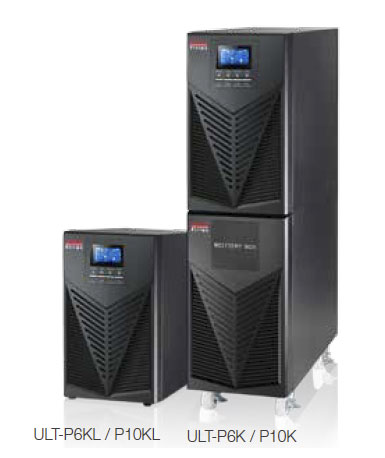

Ultima Plus Series

Ultima PlusFeatures

  • Online Double conversion technology with DSP control.
  • DSP technology guarantees high performance.
  • Pure sine wave output.
  • 0.8 output power factor.
  • One integrated unit with standard and long-run models.
  • Adjustable battery number from 16 pcs to 20 pcs.
  • Adjustable charging current via LCD setting or software (0.5~6A) for long-run models.
  • 3 stage extendable charging design for optimized battery performance.
  • Wide input voltage range (110-300 VAC).
  • 0.99 active input power factor correction.
  • 50/60 frequency converter mode.
  • Emergency power off function (EPO).
  • Maintenance bypass switch.
  • SNMP / RS-232 / USB communications.





Ultima Plus On-Line UPS Specification

 Model  ULT - P6K   ULT - P6KL(D)   ULT - P10K   ULT - P10KL (D)
 Capacity  6000VA / 4800W 10000VA / 8000W
 Input
 Phase Single phase with ground
 Normal Voltage 208 / 220 / 230 / 240 Vac
 Voltage Range  176 - 300 Vac at 100% load; 110 - 300 Vac at 50% load
 Frequency Range        46~54Hz or 56~64Hz
 Power Factor ≥ 0.99 @ 100% load
 Output
 Voltage  208 / 220 / 230 / 240 Vac
 AC Voltage Regulation (Batt. Mode)  ± 1%
 Current Crest Ratio  3:1 (max)
 Harmonic Distortion ≤ 3% THD (Linear Load)
≤ 6% THD (Non-Linear Load)
≤ 3% THD (Linear Load)
≤ 7% THD (Non-Linear Load)
≤ 3% THD (Linear Load)
≤ 6% THD (Non-Linear Load)
≤ 3% THD (Linear Load)
≤ 7% THD (Non-Linear Load)
 Transfer Time  AC to DC Zero
 Inverter to Bypass Zero
 Efficiency
 Line Mode 89% 84% 90% 84%
 Battery Mode  88% 83% 89% 83%
 Battery
 Standerd
   Model
 Battery Type 12V / 74H
N/A
12V / 9AH N/A
 Numbers 20 pcs 20 pcs
 Typical Recharge Time 8 hrs recover to 90% capacity 8 hrs recover to 90% capacity
 Charging Current Default: 1.0A ±10%
Max.: 2.0A ±10%
Default: 1.0A ±10%
Max.: 2.0A ±10%
 Float Charging Voltage 273 VDC ± 1% 273 VDC ± 1%
 Long-Run  Battery Type Depending on applications
 Numbers 16 - 20 (adjsutable)
 Charging Current default 4.0A ± 10%, Max.: 6.0A ± 10%
 Float Charging Voltage 273 VDC ± 1% (based on 20 pc batteries)
 Indicator
 LCD Panel UPS status, load level, battery level, input/output voltage, discharge timer & fault conditions
 Physical
 Standard
 Model
 Dimension (DxWxH) 369 x 190 x 688mm
14.5 x 7.5 x 27.1in
N/A 442 x 190 x 688mm
17.4 x 7.5 x 27.1in
N/A
 Net Weight 70KG / 154.4lb 75KG / 165.4lb
 Long-Run  Dimension (DxWxH) 369 x 190 x 318mm
14.5 x 7.5 x 12.5in
369 x 190 x 688mm
14.5 x 7.5 x 27.1in
442 x 190 x 318mm
17.4 x 7.5 x 12.5in
442 x 190 x 688mm
17.4 x 7.5 x 27.1in
 Net Weight  21KG / 46.3lb 72KG / 158.8lb   23KG / 50.7lb 82KG / 180.8lb
 Management
 Smart RS-232 / USB Support Windows® 2000/2003/XP/Vista/7/8/Linux/Unix/MAC
 Optional SNMP Power management from SNMP manager and Web browser
